INTEGRITANK® waterproofing system
Ensuring the integrity of critical infrastructure
The INTEGRITANK® system is a highly durable waterproofing membrane that offers long-lasting protection. Its fully bonded nature means that water does not track behind the membrane, creating a straightforward solution to leak prevention.
INTEGRITANK® Product Documents
| Product Name | Product Data Sheet |
| INTEGRITANK® |
INTEGRITANK® Detail Drawings
| Product Name | DWG | |
| INT-19-01 - Typical deck with finishes | ||
| INT-19-02 - Typical deck with insulated finishes | ||
| INT-19-03 - Typical deck with planter finishes | ||
| INT-19-04 - Typical deck with compacted angular fill finishes | ||
| INT-19-05 - Cast in PVC pipe penetration | ||
| INT-19-06 - Cast in steel / cast iron pipe penetration | ||
| INT-19-07 - Cast in HDPE ridgicoil pipe penetration | ||
| INT-19-08 - Resin anchor penetraion options | ||
| INT-19-09 - Single / double entry outlet | ||
| INT-19-10 - Cast Iron drainage outlet | ||
| INT-19-11 - RC wall / deck interface (PREPRUFE® PLUS) | ||
| INT-19-12 - RC wall / deck interface (PREPRUFE® PLUS - confined) | ||
| INT-19-13 - RC wall / deck interface (PREPRUFE® 800PA) | ||
| INT-19-14 - RC wall / deck interface (ADPRUFE®) | ||
| INT-19-15 - Termination - cladding / glazing | ||
| INT-19-16 - Termination to RC upstand | ||
| INT-19-17 - Termination to inner leaf of wall cavity | ||
| INT-19-18 - Termination to outer leaf of wall cavity | ||
| INT-19-19 - Planter Detail | ||
| INT-19-20 - Steel base plate | ||
| INT-19-21 - Raised deck expansion joint - watertight capping | ||
| INT-19-22 - Deck expansion joint - SENTINEL SABA | ||
| INT-19-23 - Raised deck expansion joint - SENTINEL SABA | ||
| INT-19-24 - Deck expansion joint at wall - SENTINEL SABA | ||
| INT-19-25 - Deck expansion joint - SERVISEAL 240 | ||
| INT-19-26 - Deck expansion joint at wall - SERVISEAL Pilecap |
Products
- Product Name
- Description
- Key Benefits
- Applications Type
INTEGRITANK® is a high performance, structural waterproofing membrane for the protection of steel and concrete structures based on GCP’s (previously Stirling Lloyd) unique ESSELAC® advanced resin technology and extensive experience in the development of coatings for specialist waterproofing.
- Unaffected by high humidity
- Rapid cure even at low temperatures
- Able to carry load or traffic after one hour
Gain continuous waterproofing protection
Structures such as decks and balconies are continually exposed to the elements, making them susceptible to corrosion and water ingress. Therefore, it is crucial that a protective coating is applied in order to maintain their integrity. Developed by Stirling Lloyd (now GCP Applied Technologies), the INTEGRITANK® waterproofing system offers high bond strength in addition to crack bridging that helps these structures stands the test of time.
Accelerate return-to-service
Unlike sheet-applied waterproofing, which can be time-consuming to apply, the INTEGRITANK® liquid membrane can follow any contour or irregular surface, making simple work of complex detailing. The system’s fast application, one-hour cure time and on-the-spot quality assurance mean less time is needed for waterproofing application.
Additional Product Advantages:
- Flexibility to apply by hand or spray
- Can be applied virtually year-round in a wide range of temperatures
- Eliminates the need for complex equipment and hot works permits
- UV and chemical resistant
- No protection boards or root barrier required
Applications
- Green roofs
- Basement roofs
- Terraces and balconies
- Podium decks

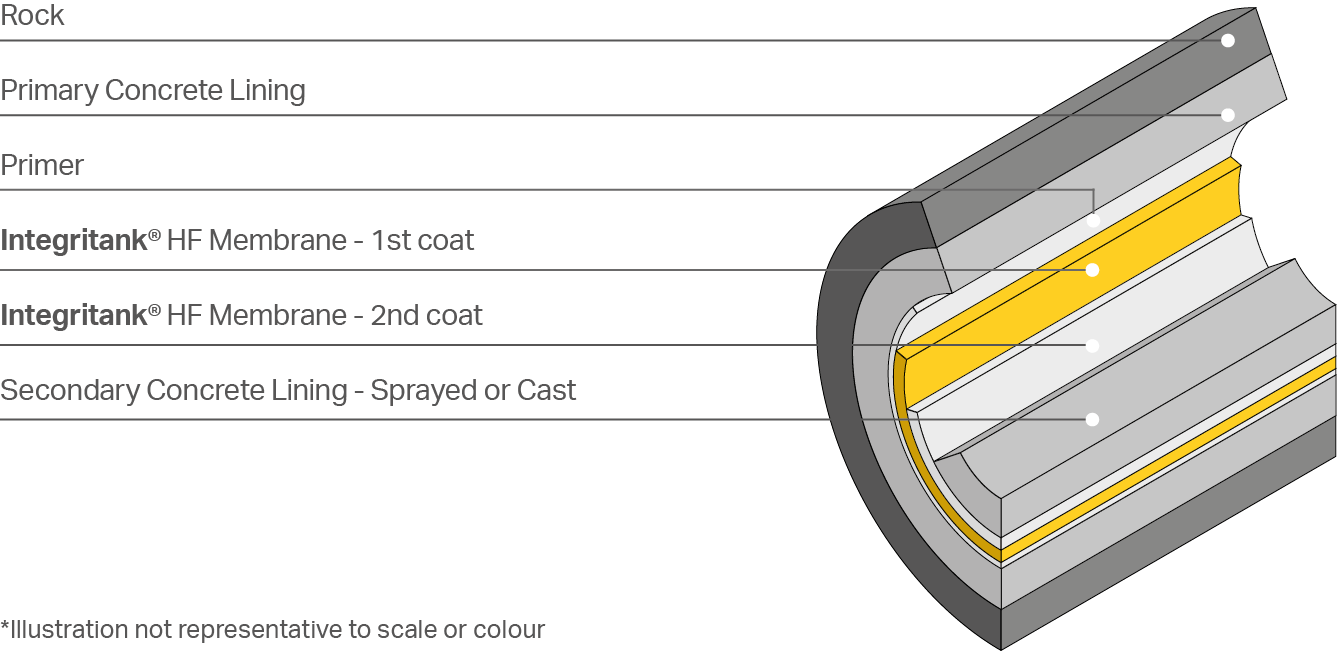

- Immersed tube tunnels
- Cut and cover tunnels
- Bored tunnels and shafts
