PREPRUFE® pre-applied waterproofing solutions

A high performance, fully adhered, pre-applied waterproofing system for critical below grade applications.

BIM Objects |

Challenges of below grade waterproofing.

Below grade waterproofing is a standout challenge for any construction project. Leaks from groundwater, storm water runoff or irrigation water may impact the foundation of any building that's improperly waterproofed—and when concrete is involved, there are any number of ways that water can travel into and around a structure.

  • Water can come up through the seams of a poorly designed or improperly installed waterproofing membrane
  • Job site conditions such as dust can spoil the adhesion of membrane to concrete and prevent a system from performing as designed
  • Imperfections, voids and cracks in concrete can create a pathway for water to migrate in and around a structure.

To manage the risks outlined above and meet the challenges of below-grade construction, a robust, high performing and easily installed waterproofing system is required.

Documents

PREPRUFE® Product Documents

Product Name Product Data Sheet Product Brochure
PREPRUFE® 160 Flex
Product Data Sheet
PREPRUFE® 800PA/ 800PA LT Membrane (UK/IE Version)
Product Data Sheet
PREPRUFE® Plus Membranes (UK/IE Version)
Product Data Sheet
Product Brochure
PREPRUFE® SC1 Primer (UK/IE Version)
Product Data Sheet
PREPRUFE® Tape
Product Data Sheet

Detail Drawings

Product Name DWG PDF
PP003-0516 - Pile Heads Detail Drawing
PP004-0516 - Slab Penetrations Detail Drawing
PP005-0516 - New to Existing Slab Detail Drawing
PP006-0516 - Wall Construction / Expansion Joints Detail Drawing
PP007-0516 - Sheet Piling Options Detail Drawing
PP008-0516 - Wall Penetrations Detail Drawing
PP009-0516 - Wall Base Against Permanent Shutter Detail Drawing
PP01-0516 - Overlaps Detail Drawing
PP010-0516 - Wall Base With Drainage Sheet Detail Drawing
PP011-0516 - Wall to Upper Level Slab 01 Detail Drawing
PP012-0516 - Wall to Upper Level Slab 02 Detail Drawing
PP013-0516 - Slab Edge Termination Detail Drawing
PP014-0516 - Monolithic Pile Cap Terminations Detail Drawing
PP015-0516 - Pile Caps Detail Drawing

Product Brochures

Product Name PDF
PREPRUFE® Plus Brochure
Preprufe® Plus Infographic

Guide Specifications

Product Name DOCX
Preprufe® SCS Fluid Injected Composite Waterproofing
Products & Accessories

Products

  • Product Name
  • Description
  • Key Benefits
  • Applications Type
PREPRUFE® 160 Flex
Description

Preprufe® 160 Flex waterproof membrane is a composite sheet comprising of a robust highly flexible backing, a pressure sensitive adhesive and a trafficable weather resistant coating.

Key Benefits
  • Adhesive seal to concrete
  • Lightweight and flexible
  • Inert
Application Type
  • Water and vapour proofing all basement grades to BS8102: 2009
  • Waterproofing civil engineering substructures
  • Methane, carbon dioxide and radon gas protection
PREPRUFE® 800PA/ 800PA LT Membrane (UK/IE Version)
Description

GCP Applied Technologies (“GCP”) PREPRUFE® 800PA is a cold-applied, self-adhesive waterproofing membrane, composed of a cross-laminated HDPE film, and a synthetic non-bituminous adhesive. PREPRUFE® 800PA incorporates the PREPRUFE® Advanced Bond Technology™.

Key Benefits
  • Non-bituminous
  • Adhesion
  • Productivity
  • Fully bonded

Application Type
  • Basement walls of all basement grades to BS 8102: 2009
  • Below-ground car parks
  • Underground RC reservoirs and tanks Industrial plants
  • Radon, methane and carbon dioxide gas protection
  • Protection from water, damp and gas of critical substructures
PREPRUFE® Plus Membranes (UK/IE Version)
Description

PREPRUFE® 300R Plus & 160R Plus membranes are the latest generation of PREPRUFE® membranes with the unique PREPRUFE® ZipLap™ seam.

Key Benefits
  • Fast, simple and secure
  • Advanced Bond Technology reduces risk
  • Preprufe ZipLap dual adhesive watertight laps
  • Reduces cost and saves time
Application Type
  • Water and vapour proofing for all basement grades to BS 8102:2009
  • Waterproofing civil engineering sub-structures
  • Methane, carbon dioxide and radon gas protection
PREPRUFE® SC1 Primer (UK/IE Version)
Description

PREPRUFE® SC1 primer is a green coloured, non-bituminous, solvent based primer, which provides superior adhesion of PREPRUFE® 800PA non-bituminous adhesive membrane to a wide variety of substrates.

Key Benefits
  • Quick drying - fast membrane application.
  • Damp and green concrete tolerant.
  • Active formulation for enhanced membrane adhesion.
  • Compatible with Preprufe 800 PA membrane
Application Type
PREPRUFE® Tape
Description

Preprufe® Tape and Preprufe CJ Tape are specially formulated two sided, reinforced pressure-sensitive tapes.

Key Benefits
Application Type
  • Detail areas including end laps, penetrations and repairs to Preprufe waterproofing systems
  • Construction joints

Accessories

  • Accessory Name
  • Description
  • Key Benefits
  • Applications Type
PREPRUFE® SC1 Primer (UK/IE Version)
Description

PREPRUFE® SC1 primer is a green coloured, non-bituminous, solvent based primer, which provides superior adhesion of PREPRUFE® 800PA non-bituminous adhesive membrane to a wide variety of substrates.

Key Benefits
  • Quick drying - fast membrane application.
  • Damp and green concrete tolerant.
  • Active formulation for enhanced membrane adhesion.
  • Compatible with Preprufe 800 PA membrane
Application Type
PREPRUFE® Tape
Description

Preprufe® Tape and Preprufe CJ Tape are specially formulated two sided, reinforced pressure-sensitive tapes.

Key Benefits
Application Type
  • Detail areas including end laps, penetrations and repairs to Preprufe waterproofing systems
  • Construction joints
Overview

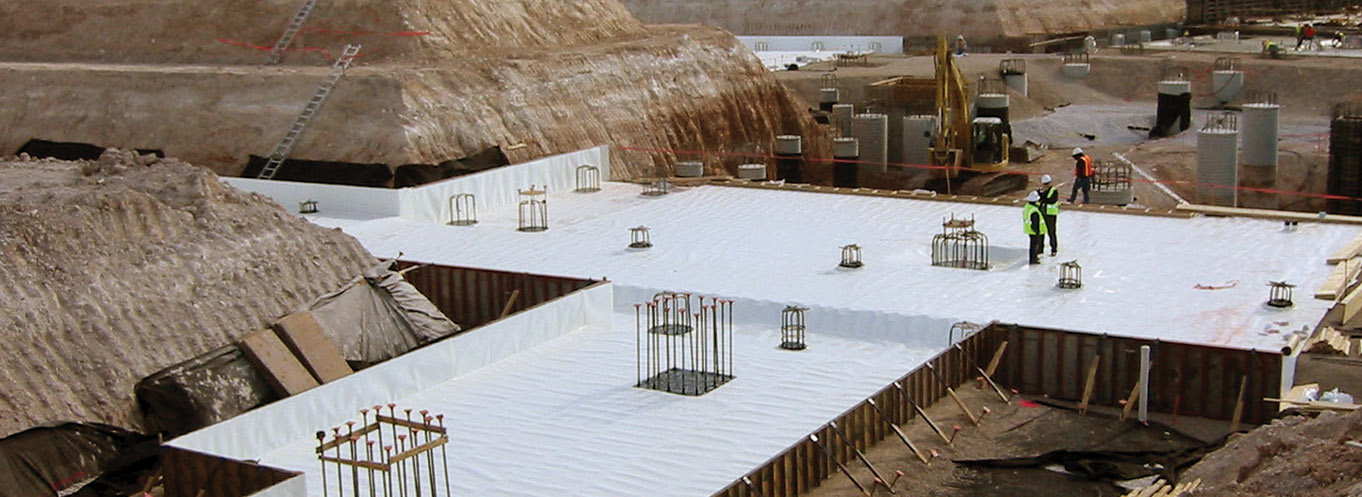

Protect your building with a three-layer membrane

Comprised of a robust HDPE film, pressure sensitive adhesive and protective coating, the PREPRUFE® system forms a robust, permanent and aggressive adhesive bond with any concrete slab. The PREPRUFE® waterproofing system products are specifically designed to perform in critical applications and incorporate Advanced Bond Technology™ to ensure fully adhered and long lasting product performance. This technology allows the PREPRUFE® system to form a continuous unbroken seal with the concrete for the design life of the project.

A proven, reliable waterproofing solution for critical applications

The PREPRUFE® waterproofing Advanced Bond Technology™ creates a continuous, integral and permanent adhesive bond to concrete. This seal prevents the lateral migration of water into and around the structure and provides performance for the lifetime of the structure. In the case of a breach or installation error, this fully-bonded membrane ensures that water under hydrostatic pressure is unable to migrate between the membrane and concrete, therefore limiting the risk of catastrophic waterproofing failure. Independent testing and a 25+ year track record has proven that the PREPRUFE® membrane can resist lateral water migration at extremely high pressure – 70+ meters of hydrostatic head pressure. For this reason, the PREPRUFE® systems are globally proven in the world's most critical applications.

Contractor friendly, straightforward installation to ensure performance and accelerate project schedules

Many systems in the market today require the use of welding or mechanically fastened laps. These installation requirements require a skilled installer, introduce risk to the installation and take time, effort and expertise. These methods requires a large crew and specialised equipment in addition to creating the potential for dangerous and unpleasant site conditions such as odour. In addition to the logistical challenges, these processes tend to be finicky— common jobsite challenges such as dust and moisture can easily result in incorrectly completed laps and details, both of which may result in expensive and costly long-term consequences.

By contrast, the PREPRUFE® Plus membrane can be applied with a minimal crew and requires no special equipment for installation. Installation is simple: a "kick-out" design allows workers to unroll a sheet in seconds. A dual adhesive ZipLap™ seam allows sheets to bond to one another easily, and the adhesive is designed to resist common nuisance conditions onsite - dust, debris and moisture.

World-quality waterproofing

With applications on mega projects such as the Alaskan Viaduct, the largest bored tunnel on Earth, the PREPRUFE® system has been proven the world over in critical applications. Over the last 25 years, builders have installed more than 650 million square feet (over 60 million m2) of the PREPRUFE® membrane in below-grade applications—there’s hardly a more trusted brand in waterproofing. For more information on how the PREPRUFE® system can benefit your project, contact GCP today.
